ISUZU (12/80) x 2 Engine 8T Diesel Forklift Truck Maximal Heavy Container Forklift
PRODUCT DETAILS:
1.Intelligent Starting System, forklift hanging gear start prevent function improves the operation safety and longer gearbox service life;
2.Ergonomic design, rational operation device layout, equipped with adjustable seats and steering wheel;
3.Electric one button parking brake, hydraulic power drive, seperate design between the parking brake and the driving brake provides a more reliable and safety parking brake.
Product parameter:
| Model | | FD80 |
| Power Type | | Diesel |
| Rated Capacity | kg | 8000 |
| Load Centre | mm | 600 |
| Lift Height | mm | 3000 |
| Mast Tilt Angle | F/R | Deg | 6°/12° |
| Front Overhang (Wheel center to fork face) | mm | 595 |
| Ground Clearance(Bottom of mast) | mm | 200 |
| Length to face of fork(Without fork) | mm | 3565 |
| Overall Width | mm | 2010 |
| Mast Lowered Height | mm | 2500 |
| Turning Radius (outside) | mm | 3350 |
| Speed Travel (Full load) | km/h | 30 |
| Tire | Front | mm | 8.25-15-18PR |
| Rear | mm | 8.25-15-18PR |
| Wheelbase | mm | 2250 |
| Battery Voltage/Capacity | V/Ah | 10350 |
| Engine | Model | | (12/80) x 2 |
| Manufacture | | ISUZU |
| Rated output/r.p.m. | kw | 82.4/2000 |
| Rated torque/r.p.m. | N·m | 6 |
| No.of Cylinder | | 6 |
| Bore×Stroke | mm | 105×125 |
| Displacement | cc | 6494 |
| Fuel Tank Capacity | L | 125 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

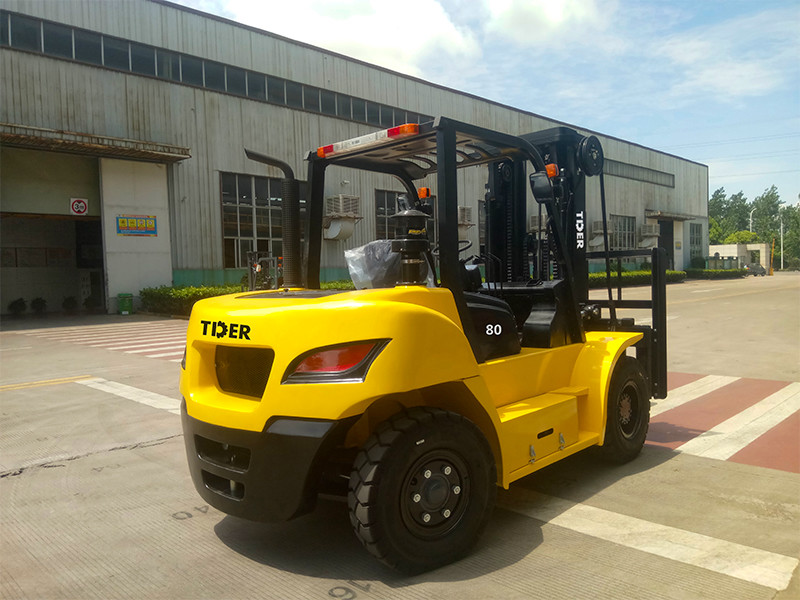

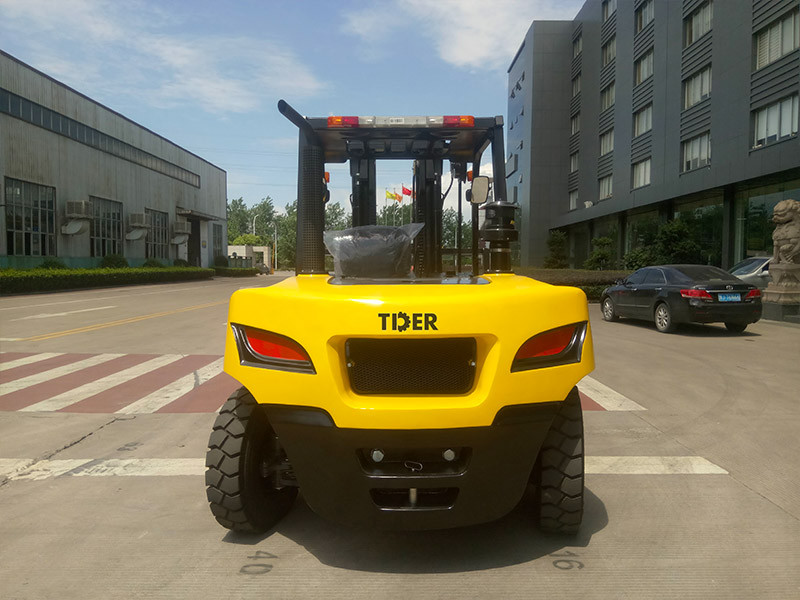

Picture Display:
Q1: Are you a factory
A1: Of course.
Q2.Do you have certificate?
A2:Our company has achieved ISO9001, CE certification.
Q3: How about the delivery time?
A3: Our production period is normally 10-20 days after receiving advance payment. For some standard model, we can delivery
immediately if we have goods in stock.
Q4: Can we print the LOGO on products?
A4: Yes, OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T or L/C, if you want other payment terms, please contact us.
